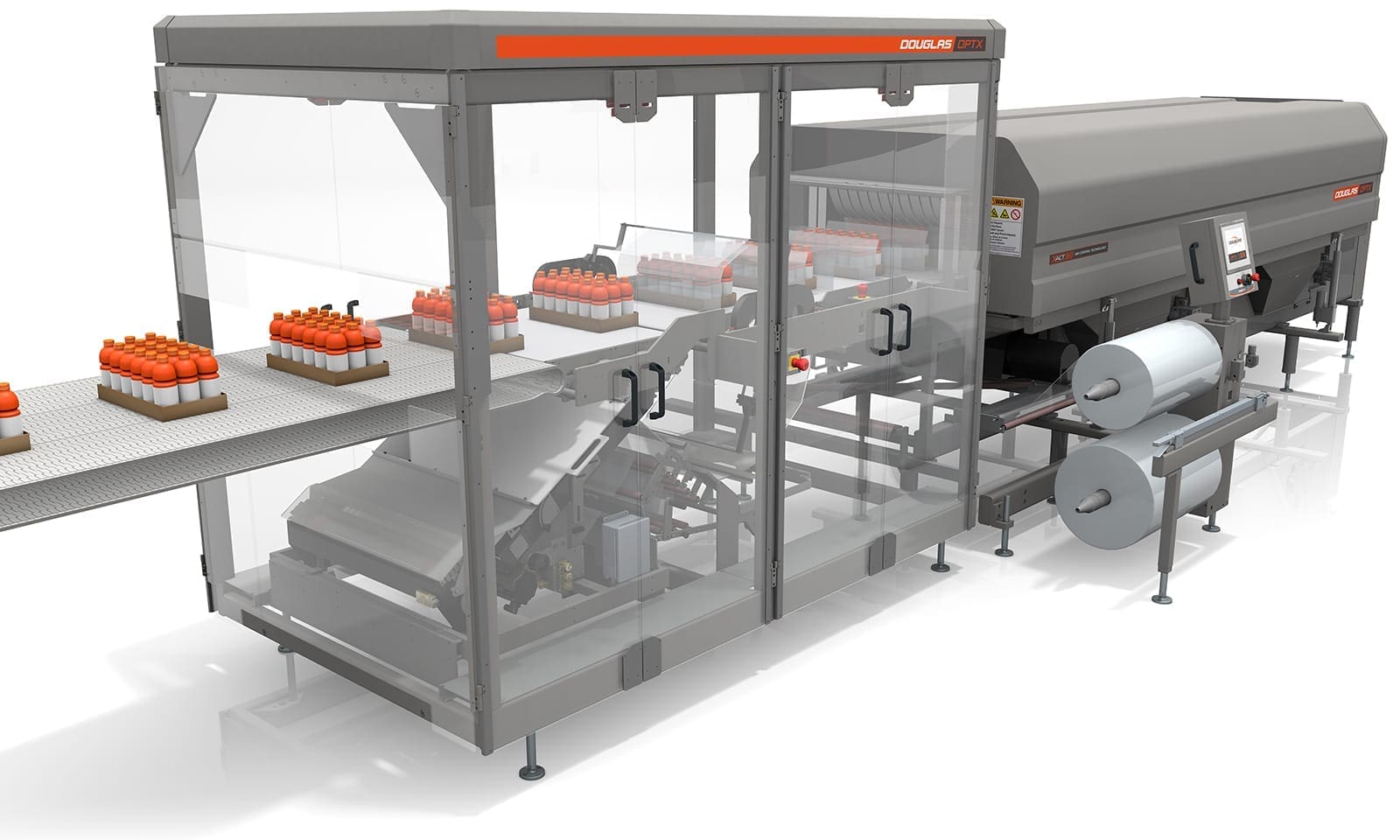

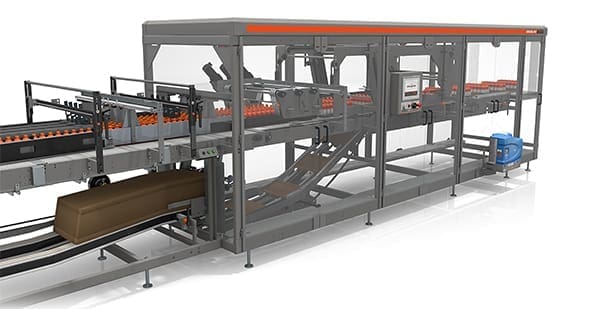

OPTX S-80 & S-105

Shrink Wrappers

Optimize Performance, Simplify Operation and Enhance Package Quality

OPTXTM shrink wrappers excel with flexibility, performance and package quality. Film handling and cutting innovations improve operating tolerance, while shrink tunnel technology simplifies setup for producing durable and appealing packages. Built-in reliability makes it a shrink wrapper that simply performs. OPTX shrink wrappers easily accommodate large size ranges ideal for the food and beverage industries.

What does this mean for you? Less downtime, reduced demand on your workforce and increased productivity. Optimize performance, simplify operation, reduce maintenance and enhance package quality with OPTX shrink wrappers.

  • Speeds:
    • OPTX S-80: up to 80 cycles per minute
    • OPTX S-105: up to 105 cycles per minute

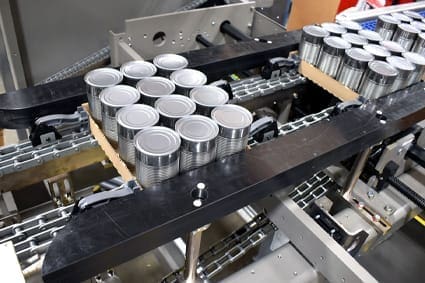

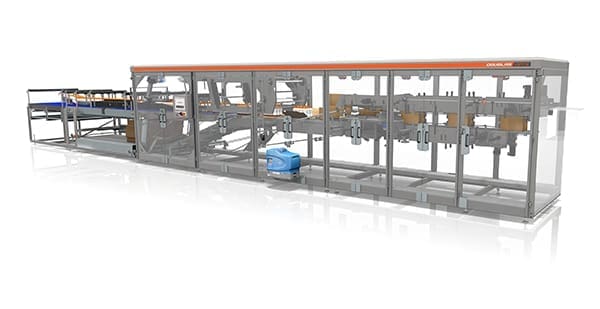

  • Available as a stand-alone unit or integrated with a tray packer
  • Simple and repeatable changeovers

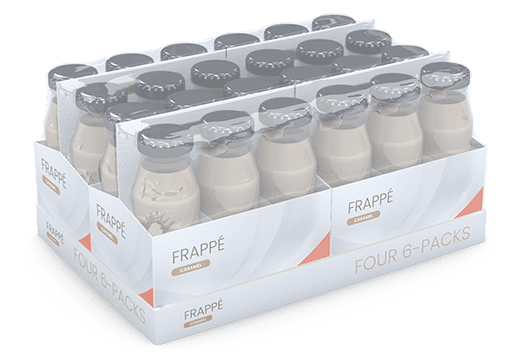

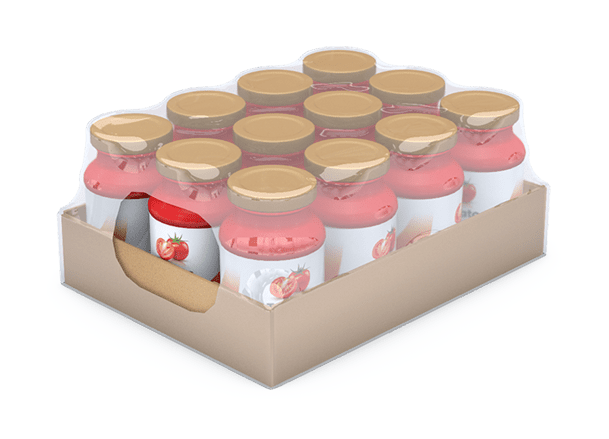

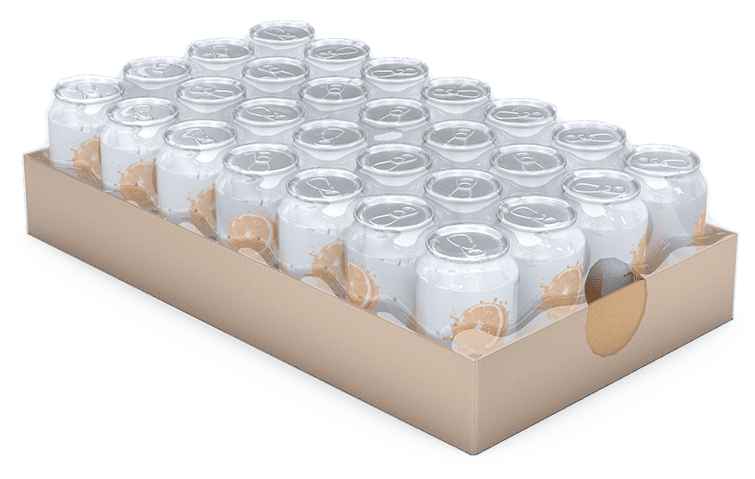

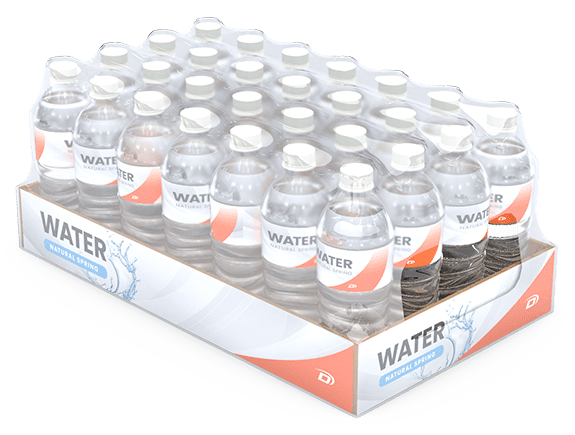

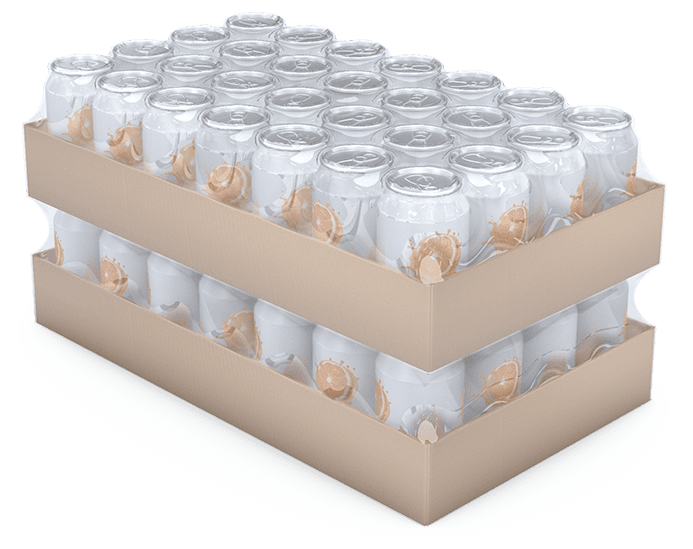

  • Clear or printed film wrapping of trayed product
  • Dual spindle side film stands for easy film loading and splicing
  • High performance film cutting and delivery, developed and engineered to be best in class
  • Flexible servo driven wrapping wand provides exceptional film control
  • Shrink tunnels utilizing XACT 360™ Air Control Technology, engineered using computational fluid dynamics to produce laminar air flow and balanced heat distribution, resulting in optimal durability and visual appeal for every package

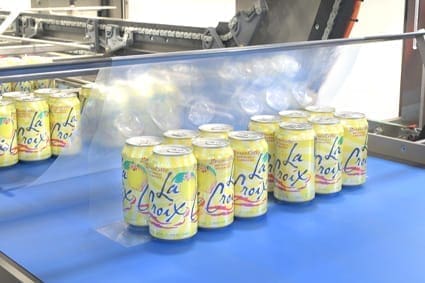

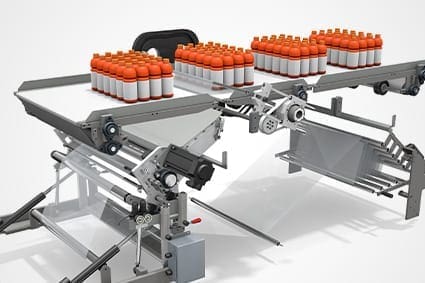

Film handling and wrapping

Reliability and simplicity that operations staff favor. Operating tolerance and package quality are the focus of OPTX film handling, with performance enhancing features integrated into every element.

  • Ergonomic side mounted film stand and an available automatic film splicer enhance safety and productivity
  • Film roller design counteracts wrinkles and overlapping induced by variations in film, improving cutting efficiency and package quality
  • Film cutting efficiency is designed in delivering operation tolerance and simplicity
    • Reduced occurrence of uncut film and film transfer issues through the cutter
      • Film cutting tension assured by proprietary single nip roller and vacuum table designs with edge-to-edge film control; reduces missed cuts due to tension loss that can occur in designs with dual nip rollers
      • Vacuum table provides positive film transfer and control, eliminating the second nip roller and related setup and film transfer issues
      • High-speed cutting motion provides consistency, tolerance against film variations, and optimized full-width cutting
    • Simplified maintenance and access
      • Access for film threading and knife maintenance provided by the single nip roller design
      • Sensitivities of setup between dual nip rollers is eliminated
      • Automatic drive belt tracking extends belt life
      • Self-tensioning vacuum/film-delivery belts
  • Precise film delivery and wrapping profiles set the stage for package quality
OPTX 80-105 Wrapper Wand
OPTX 80-105 Cutter Left

The ergonomic side film stand simplifies film loading and splicing. The available automatic film splicer delivers precise print registration and heat splicing, reducing critical machine downtime. The easy-access side film stand enables operators to stage clear or printed film, at their convenience, while the machine is running. Staging during operation maximizes production time and minimizes the occurrence of empty film faults. Once the film is staged, no operator attention is needed for splicing. Splicing occurs automatically, providing operators considerable flexibility with work load.

More uptime, more productivity … this option is a great addition to a new OPTX Shrink Wrap System. Its simplicity and convenience provides an efficient work environment for the operator.

OPTX 80-105 Film Splice

The wrapping wand uses quick change circular, elliptical or trapezoidal wand paths, depending on product size range. This results in increased film control. More benefits include a large size range, the ability to accept randomly spaced products and few parts to maintain.

Wrapping Wands

Shrink Tunnels Utilizing XACT 360™ Air Control Technology – simply and consistently better packages

OPTX Tunnel Dual

With OPTX™ shrink tunnels and exclusive XACT 360™ Air Control Technology, enhanced package appearance and durability are achieved with next level simplicity and efficiency. With XACT 360, all OPTX solutions deliver consistently superior finished packages regardless of product type or shape.

Trademarks of a design that produces the most appealing and durable packages, OPTX shrink tunnels maintain gentle, laminar air flow and balanced heat distribution. And with XACT 360 Air Control Technology, OPTX takes it a step further by quickly adjusting with unprecedented simplicity to deliver air exactly where it’s needed for each product.

1 – Heated air is delivered through conveyor chain with laminar flow to bond the lap seal and surround each package 360 degrees


2 – With simple recipe selection, exclusive “air knives” automatically adjust to inject targeted air precisely where needed for specific pack characteristics


3 – Gentle laminar airflow improves package consistency by reducing wrinkle-inducing turbulence in the tunnel


4 – Recycling of cooled air reduces heater loads and minimizes heat loss, while tunnel outer shroud temperatures remain cool to the touch

Reduce energy costs and improve production efficiency with a shorter heat-up time by using gas instead of electricity to heat the shrink wrap tunnel. Tunnel heat from 75°F to 360°F in just 20 minutes, cutting the heat-up time by almost 30%. Depending on local energy costs and the type of machine used with the gas tunnel, it is estimated that companies could cut energy costs up to 75%. Contact Douglas to calculate your estimated cost savings.

Specifications

Speed: OPTX S-80: up to 80 cycles/minute
OPTX S-105: up to 105 cycles/minute
Product Size Range: Minimum: 5″ (127 mm) x 3″ (76 mm) x 9.25″ (235 mm)
Maximum: 13″ (330 mm) x 12″ (305 mm) x 22″ (558 mm)
* Direction of Travel x Vertical x Across Machine
Film Thickness: 1.5 mil to 3.5 mil printed or non-printed film
Film Width: 32” (810 mm)
OPTX S-80 & S-105 shrink wrappers easily accommodate large size ranges ideal for the food and beverage industries.

Need more information on OPTX S-80 or S-105 shrink wrappers? Contact us!
