Vantra® IM


Compact and Economical, Cartons & Trays on Same Platform

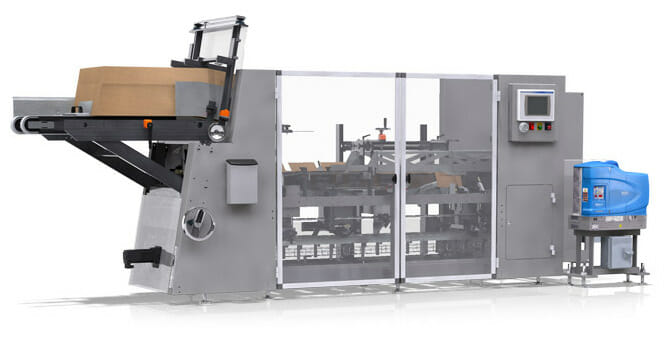

Douglas’ innovative Vantra® IM is a compact, economical intermittent motion cartoner with the flexibility to setup, load and close cartons and trays at speeds up to 55 per minute within a single platform. The versatile Vantra IM can be integrated with various infeed options to gently handle cans, bottles, cartons, bags, flat-flow wrapped product and more, including applications requiring multiple manipulations. The Vantra IM is designed with a hygienic sheet metal frame and standoff bearing mounts to accommodate the customer’s specific washdown requirements.

  • Speeds up to 55 cartons and trays per minute
  • Tray and carton capability on a single platform
  • Hygienic sheet metal frame with standoff bearing mounts
  • Various infeed styles offer application and product handling flexibility
  • 11.25” (285.75 mm) pitch or customizable upon application
  • Ergonomic, walk-in design provides easy access
  • Glue seal for POL, FOL, and RSC-flap style cartons
  • Tuck closure for standard or reverse style cartons
Cartoner Features
The Vantra® IM is easily integrated with multiple infeed types to handle cans, bottles, cups, bags, flow-wrapped product and more.
  • Cross push for single or multiple lane products with a pressure release surge at the load station, allowing a clean release of product to be loaded into a carton or tray
  • Positive place conveyor (PPC) for form-filled sealed bags and pouches
  • Vane collation for high speed handling of flat-flow wrapped products, bars and small pouches collated to single or multiple load stations
  • Pick and place for product collation in buckets or at the load station
  • Robotics for products received in mass or requiring manipulation prior to collation or loading
Vantra Tamp Load Infeed Cross Push Vantra Infeeds Vane Collation Vantra Robotic Infeeds Robotics
Fast, repeatable changeover feature offers multiple enhancements. Changeover time – significantly reduces time to less than 5 minutes (time of changeover is dependent on extent of changeover) Repeatability – rail positions are recipe-driven and locked in place to within +/- 1/32″ Flexibility – ability to place lanes where desired as opposed to centerline or fixed side adjustments and more customer options for generating product-specific recipes Durability – infeed rail’s holding force can withstand high product pressure Ergonomics – minimizing manual adjustments maximizes efficiency and promotes safety in the work environment


Drive: Servo positive drive system
Pitch: 11.25” (285.75 mm) or customizable upon application
Flight Chains: #50 series chain
Speed: Up to 55 cartons or trays/minute (product and pack pattern dependent)
Product Size Range: Per project specification
Carton Size Range: Minimum: 2” (50.8 mm) x 1” (25.4 mm) x 4” (101.6 mm) Maximum: 9.25” (234.95 mm) x 7.50” (190.5 mm) x 12” (304.8 mm) * Direction of Travel x Vertical x Across Machine
Tray Size Range: Minimum: 2” (80.8 mm) x 1” (25.4 mm) x 4” (101.6 mm) Maximum: 9.19” (233.43 mm) x 2” (50.80 mm) x 12” (304.8 mm) * Direction of Travel x Vertical x Across Machine
Magazine Length: 4’ (1219.2 mm) standard, 6’ (1828.8 mm) option
Frame: Powder coated hygienic sheet metal frame with standoff bearing mounts Stainless steel option available
Adjustments: Tool-less changeover, HMI selectable recipes, threaded screws, handwheels and hand knobs with position pointers and digital scales
Closing System: Linear compression and closing for glue or tuck Independently driven discharge belts
Glue System: Nordson ProBlue® per project specification
Guarding: Full length polycarbonate with extruded anodized aluminum frame
Electrical: Allen Bradley CompactLogix motion and logic controller Allen Bradley PanelView + HMI NEMA 12 wiring and enclosures NEMA 4 or 4X wiring and enclosures (optional)
Finish: Gray metallic epoxy powder coat All parts in contact with product are stainless steel, hard-coat anodized aluminum or plastic OEM parts are manufacturers’ standard finish
Power: 480V, 50/60HZ, 3PH One main drop and one glue drop
Air: 90 PSI (6.2 bar)
The Vantra® IM easily accommodates large size ranges and pack patterns for the food, beverage, personal care and pharmaceutical industries.
Low-Speed Cartoning for Variety Packs For low-speed automated cartoning, the Vantra IM cartoner can function as a standalone platform with manual infeed. Combine it with a Prisma® unloader to automate product infeeding as well as a TriVex® tray reloader to automate downstream tray loading.Explore Variety Pack Solutions »
